Bearing vibration monitoring

Bearing Condition Monitoring:
Detect Bearing Faults with Vibration Monitoring



Vibration monitoring is one of the most commonly used methods to detect early stages of bearing wear and bearing faults.​

Rolling element bearings such as roller bearings and ball bearings are critical components in most rotating machinery. With bearing vibration analysis, you can predict the need for bearing maintenance and prevent unscheduled production stops.




PCH vibration monitor for pumps

Low-cost bearing vibration monitoring solutions from PCH Engineering

Excessive bearing vibration can indicate defects in the various bearing components as well as unbalance and misalignment issues, which can lead to bearing failure.

PCH Engineering offers you a wide selection of vibrations sensors and monitors for monitoring bearing conditions:








Looking for a bearing monitoring solution?



Our consultants are here to help









Low-cost bearing condition monitoring system

At PCH Engineering, you can find a bearing vibration monitoring solution to match your requirements at affordable prices.

The PCH vibration monitoring system is modular, which means you can expand and adapt your solution as the need arises.




Safe, fast and flexible delivery

Our experienced engineers produce the monitors on demand at our production facility in Denmark, which makes production and delivery safe, flexible and fast.

We offer out of the box or customised bearing monitoring solutions to OEMs as well as large and small enterprises.






Contact
a consultant










Bearing vibration monitoring increases bearing lifetime



Why monitor bearing vibrations

All ball bearings and roller bearings vibrate as a result of the rotating motion of the machine.

If a bearing or its rolling elements are worn or damaged, the bearing vibration signal will change, indicating that the bearing condition is deteriorating.

By monitoring and analysing the bearing vibration signal, you can schedule bearing maintenance or replacement during planned downtime, preventing severe damage of the machine, unscheduled downtime or a complete and costly production stop.




Common bearing faults detectable with vibration monitoringCommon bearing faults that can be detected with vibration monitoring

  • Excessive loads
  • Overheating
  • True brinelling
  • False brinelling
  • Normal fatigue failure
  • Reverse loading
  • Contamination
  • Lubricant failure
  • Corrosion
  • Misaligned bearings
  • Loose fits
  • Tight fits














Industrial bearings suitable for vibration monitoring

Ball bearingsBall bearings

  • Single-row ball bearing

  • Double-row ball bearing

  • Double-row self-aligning ball bearing

  • Single-row angular contact bearing

  • Double-row angular contact bearing









Roller bearingsRoller bearings

  • Roller bearings

  • One-row cylindrical roller bearings

  • Two-row cylindrical roller bearings

  • Spherical roller bearings

  • Conical tapered roller bearings

  • Needle bearings


















How to monitor bearing vibrations

We recommend that you use a vibration monitor which measures up to 10 kHz and comes with bearing fault detectors such as Envelope spectrum, Crest factor and Kurtosis spectrum.

With the PCH 1073 and PCH 1420 vibration monitors, you get all of that and more.

The monitors are part of the PCH Link Concept, which means you can daisy-chain up to 20 monitors and combine them with the PCH EtherBridge module for IoT compatability. In addition, the monitors offer redundant safety relay (SIL 2), configurable alarm levels and delay times for local safety, offline FFT analysis and vibration data in real time.






PCH 1073 1-channel vibration monitor

This 1-channel vibration monitor operates within two simultaneously running frequency bands measuring between 0.7 Hz and 11.5 kHz.

The primary low-frequency band monitors vibrations according to DIN/ISO 10816.

The second multi-purpose band offers detectors such as RMS, Envelope, Crest factor and Kurtosis, and is ideal for monitoring the condition of roller bearings.

PCH 1420 4-channel vibration monitor

Detect early bearing faults and monitor the severity of unbalance and misalignment in your machinery with this advanced vibration monitor.

Its four input channels can be configured for various types of vibration sensors.

The monitor is ISO 10816/20816 compliant and offers broadband high frequency monitoring, Envelope, Kurtosis and Crest factor for bearing fault detection.








Where to mount vibration sensors on bearings

It is important to mount your vibration sensors correctly to ensure that the bearing’s vibration signal is distributed to the vibration sensor without any disturbance.

If you can’t mount the vibration sensor directly on the bearing housing, place the sensor as close to the bearing as possible.

The position of the sensor determines the amplitude of vibrations measured – and hence, how early bearing defects are found.






Portable or permanently mounted sensors

When using portable equipment, make sure to place the sensor in locations that ensure measurement of vibration signals in the horizontal, vertical and axial dimensions.

Permanently mounted sensors should be mounted in a radial position (90o) to the shaft and bearing.

For large machinery, you may want to consider X and Y positions.











Common bearing faults detectable with vibration monitoringKnow your basic bearing vibration frequencies

The bearing manufacturer usually provides four basic bearing frequencies for each of the bearings’ components:

  • BPFI – Ball Pass Frequency, Inner race = the number of balls or rollers that passes through a given point of the inner race each time the shaft makes a complete turn

  • BPFO – Ball Pass Frequency, Outer race = the number of balls or rollers that passes through a given point of the outer race per shaft turn

  • BSF – Ball Spin Frequency = the number of turns each bearing ball or roller makes per shaft turn

  • FTF – Fundamental Train Frequency = the number of turns the bearing cage makes per shaft turn.








Quality measurements depend on choosing the right vibration monitoring equipment for the job.

Our consultants are here to advise you on the best vibration monitoring solution for your bearings.





Contact
a consultant










Monitor bearing failure



4 stages to roller bearing failure and how to monitor each stage

Rolling element bearings progress through four stages towards failure. With vibration analysis, you can monitor the progression, estimate the time of failure and take preventive action.





Roller bearing in good condition - no bearing defects visibleStage 1: The bearing is in good condition

The bearing is new and in mint condition.

Make sure to record its frequency 'signature' and normal operating acceleration and velocity values at this stage.




Stage 2: Bearing wear has started, but is invisible

At stage 2, the bearing still looks flawless to the naked eye, but defects have started under the surface.

The frequency signature changes, and the overall base level noise and velocity spectrum rise.





Bearing defects visibleStage 3: Bearing defects are visible

The raceway typically shows signs of surface failure in the form of metal coming off in minute sheets (known as delaminating).

The velocity spectrum is much higher, and more background noise has developed with certain frequencies standing out in the background noise (side bands). This indicates that failure is fast approaching.




Stage 4: Audible bearing noise indicating urgent need for bearing replacement

At this stage, the change in vibrations is audible to humans as excessive bearing noise.

More vibration frequencies appear, and more velocity side bands develop. Readings start to indicate amplitude changes.











Most common causes of bearing failure

Most bearings do not last their expected lifetime. You can increase the lifetime of your bearings by ensuring proper installation, proper lubrication and bearing maintenance.

One way to ensure that your machine is properly maintained and neither overlubricated nor lacking lubrication is to monitor the vibration signal of the machine.





Bearing lubrication failureBearing lubrication

Lubrication failure is the most common reason for bearing failure. For a bearing to function optimally, it must be properly lubricated with the right lubricant for the application and the exact amount necessary.

Lubrication problems in bearings occur due to:

  • incorrect lubrication (either the wrong lubricant or the wrong temperature)

  • inadequate maintenance (not enough lubricant)

  • overlubrication

  • contamination from seal failures or other external sources




Bearing corrosion

Bearing corrosion

Corrosion in bearings can be caused by sources that produce rust such as fluids, oxidants, acids etc.

Corrosion causes increased vibration as debris builds up in the bearing, leading to preload.

Sealed bearings can help in some conditions, but they are not always enough.

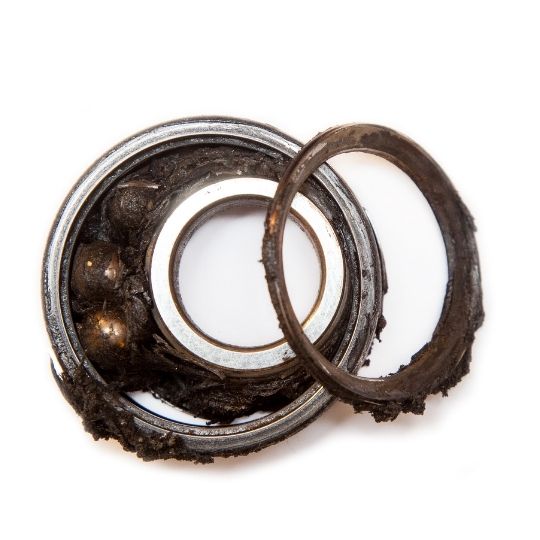

Bearing contaminationBearing contamination

Contamination in the form of dirt or grit between the balls or rolling elements can severely damage the bearings.


Bearing contamination can happen due to:

  • Improperly maintained bearings with failed seals – or bearings with no seals at all

  • Poor lubrication monitoring with debris building up in the lubrication grease

  • Incorrect lubrication, which leads to premature wear and bearing failure






Bearing overloadOverloading / Excessive loading of bearings

Excessive loading of the bearings can lead to premature bearing fatigue.


Excessive loading can be caused by:

  • installation flaws leading to unbalance and misalignment of the bearing or the machine
  • spalling failure (small shards of metal weld themselves together in the bearing)
  • premature metal fatigue
  • tight fits
  • misalignment, bent shafts, burrs etc.
  • choosing the wrong bearing for the application (e.g. using rolling element bearings for oscillating machinery).






Condition monitoring can help increase the lifetime of the bearing and decrease wear and the risk of bearing failure.

Let us help you find the right monitoring solution for your rolling element bearings.
